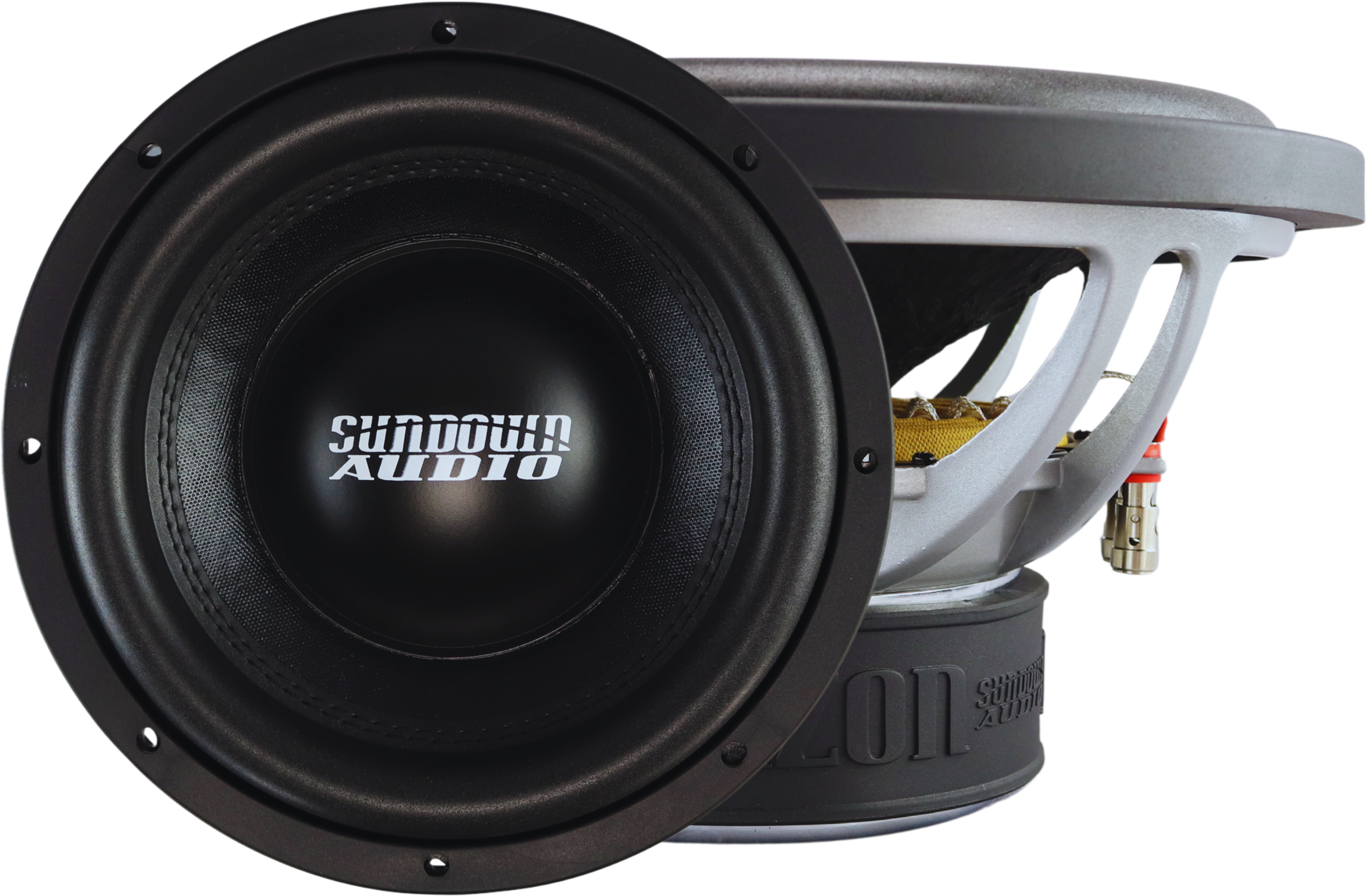

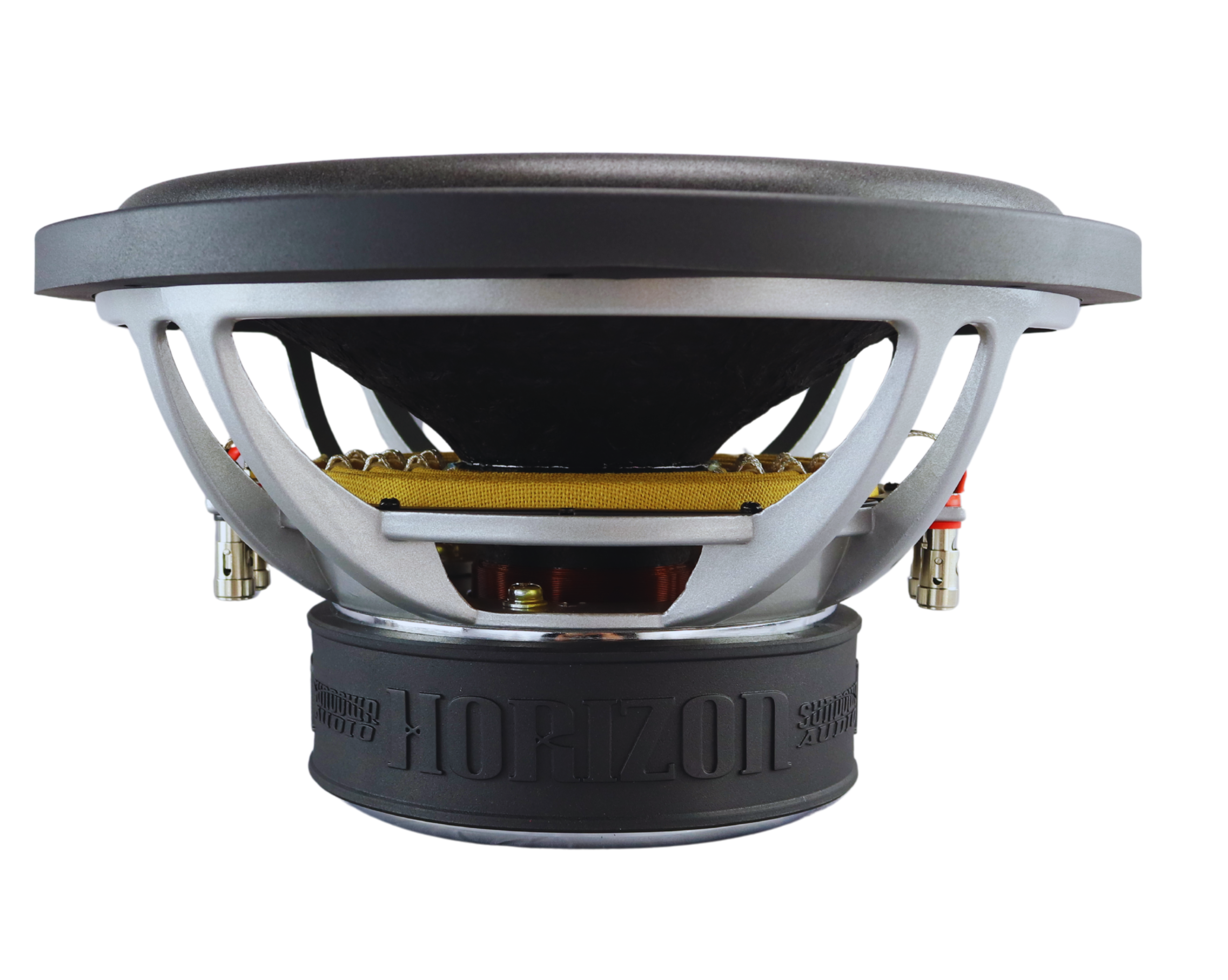

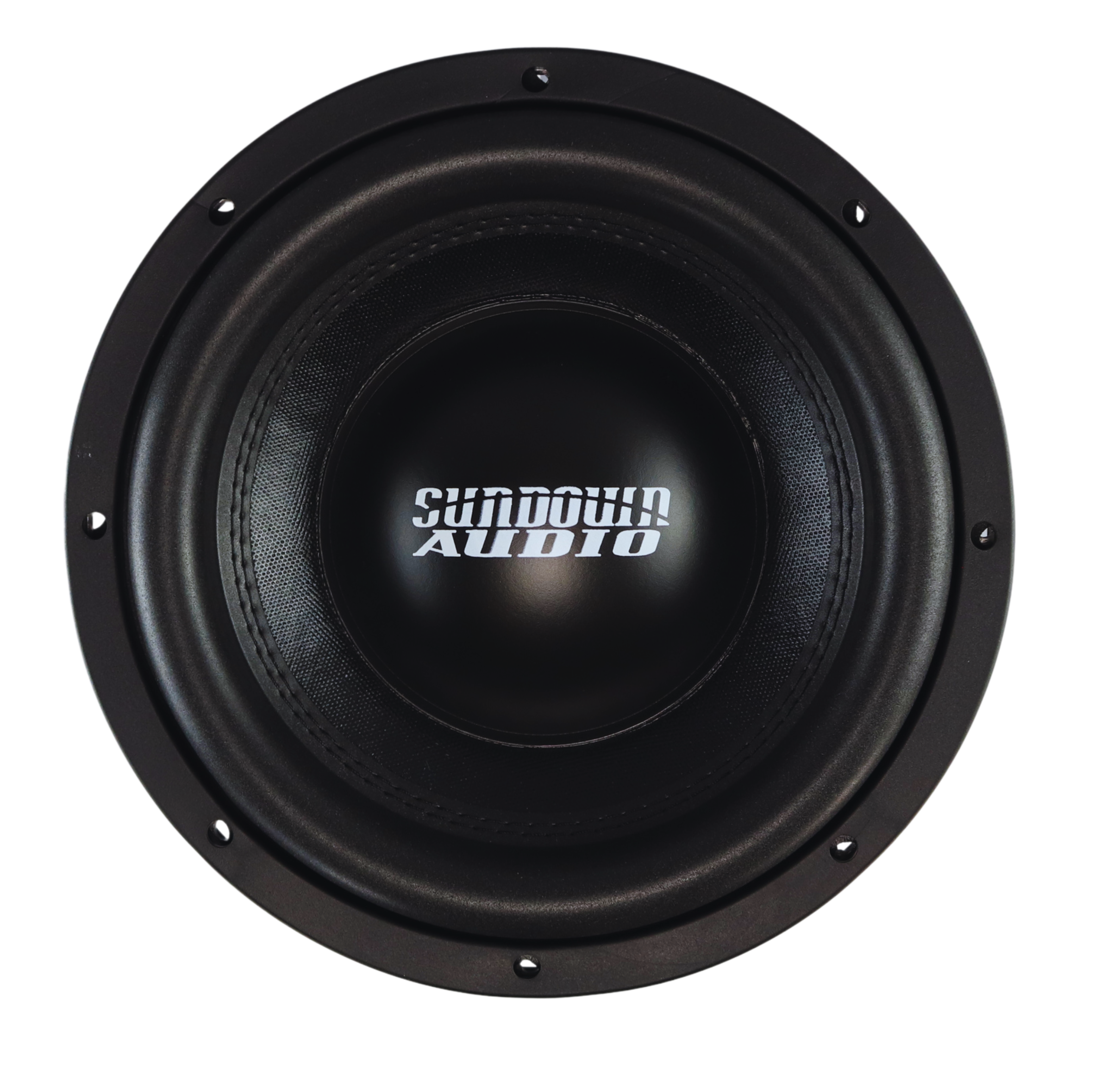

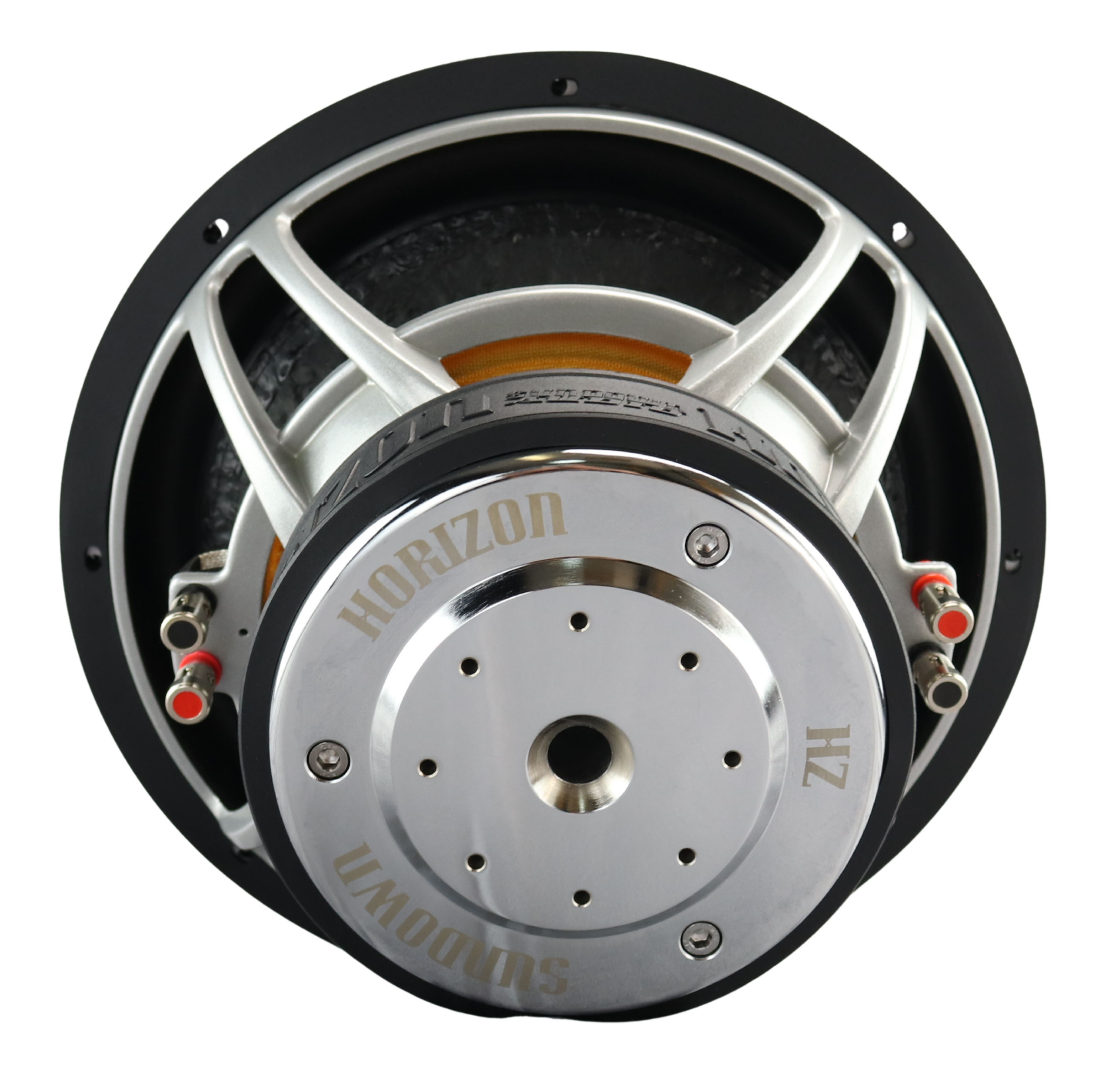

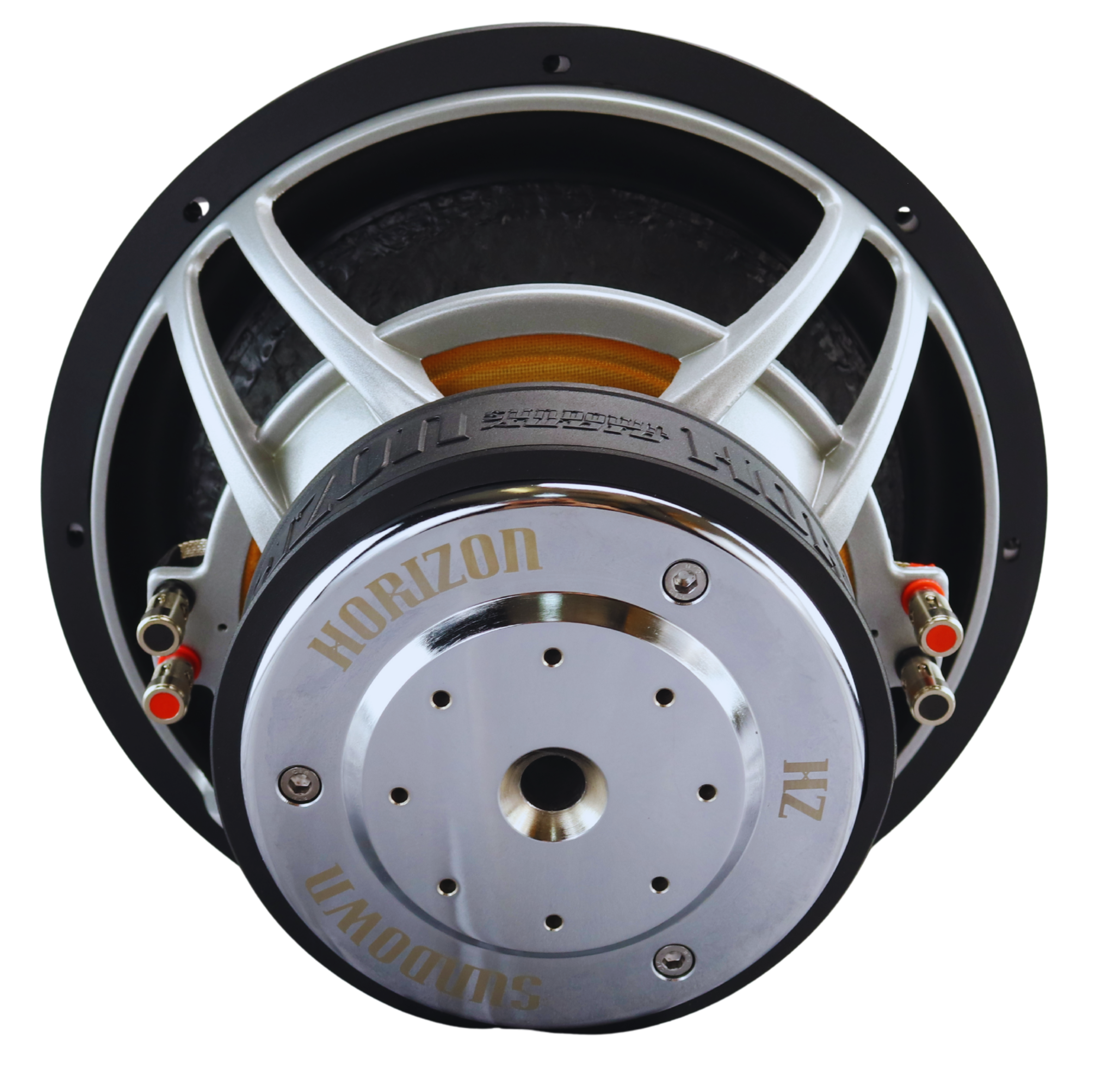

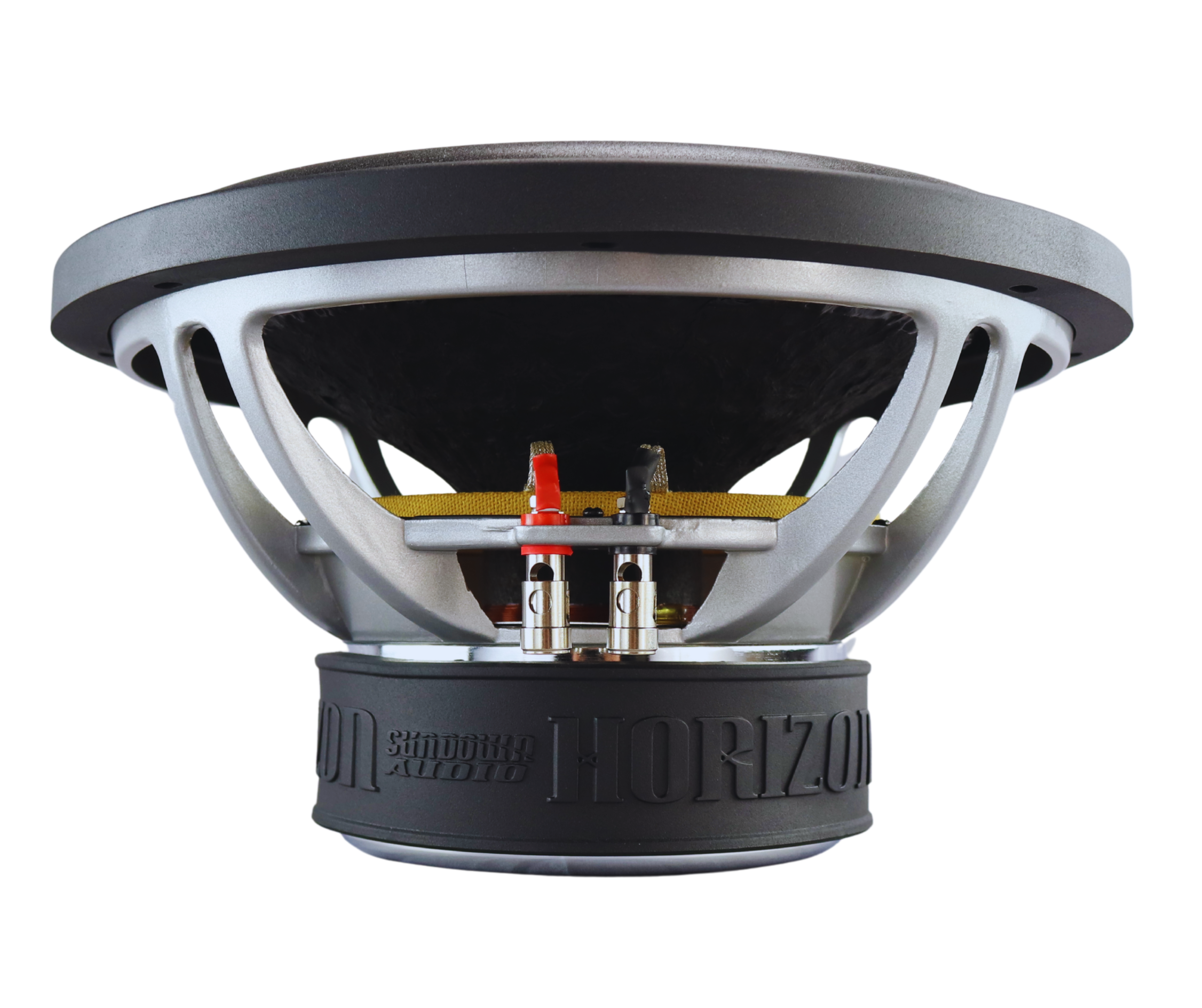

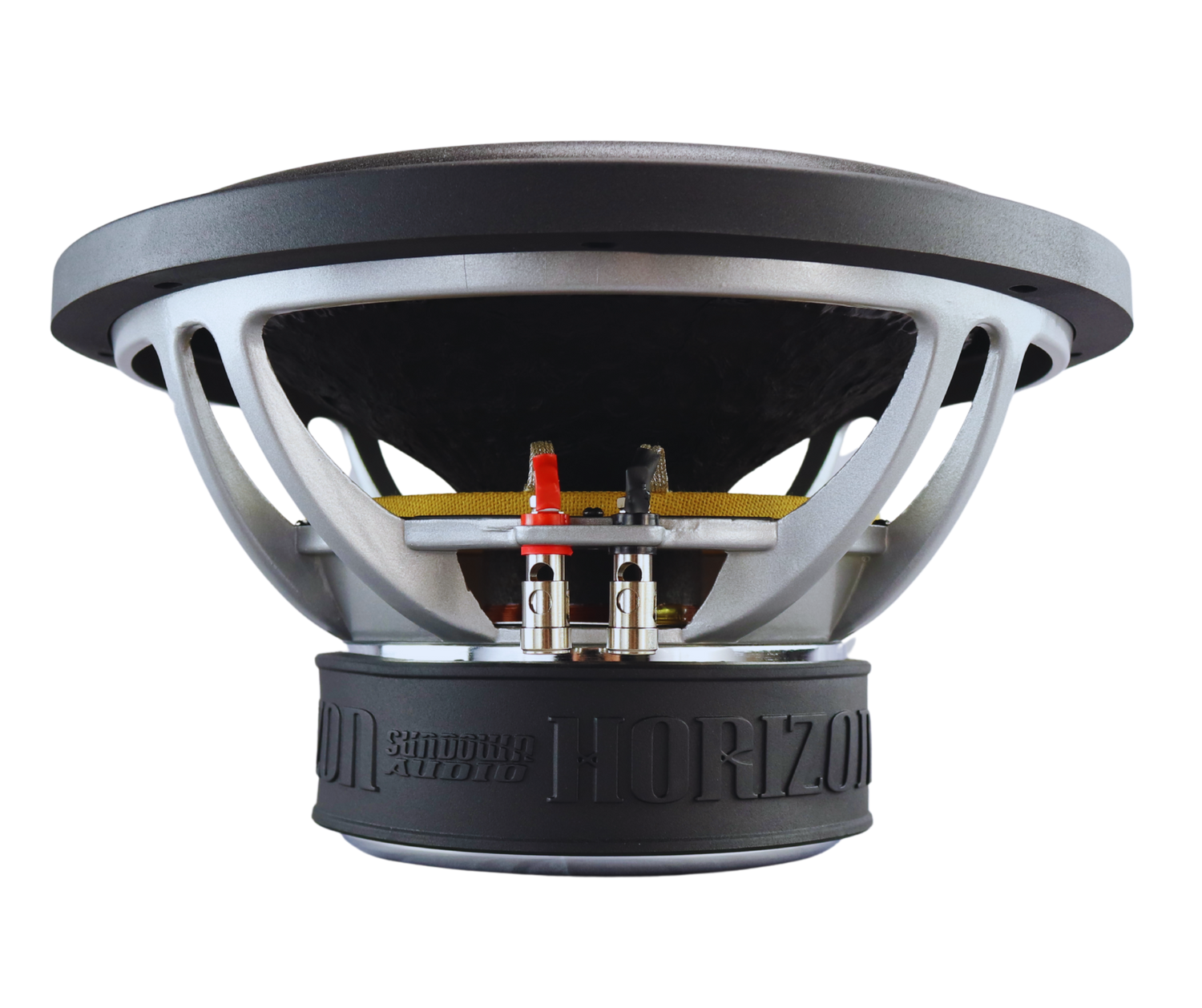

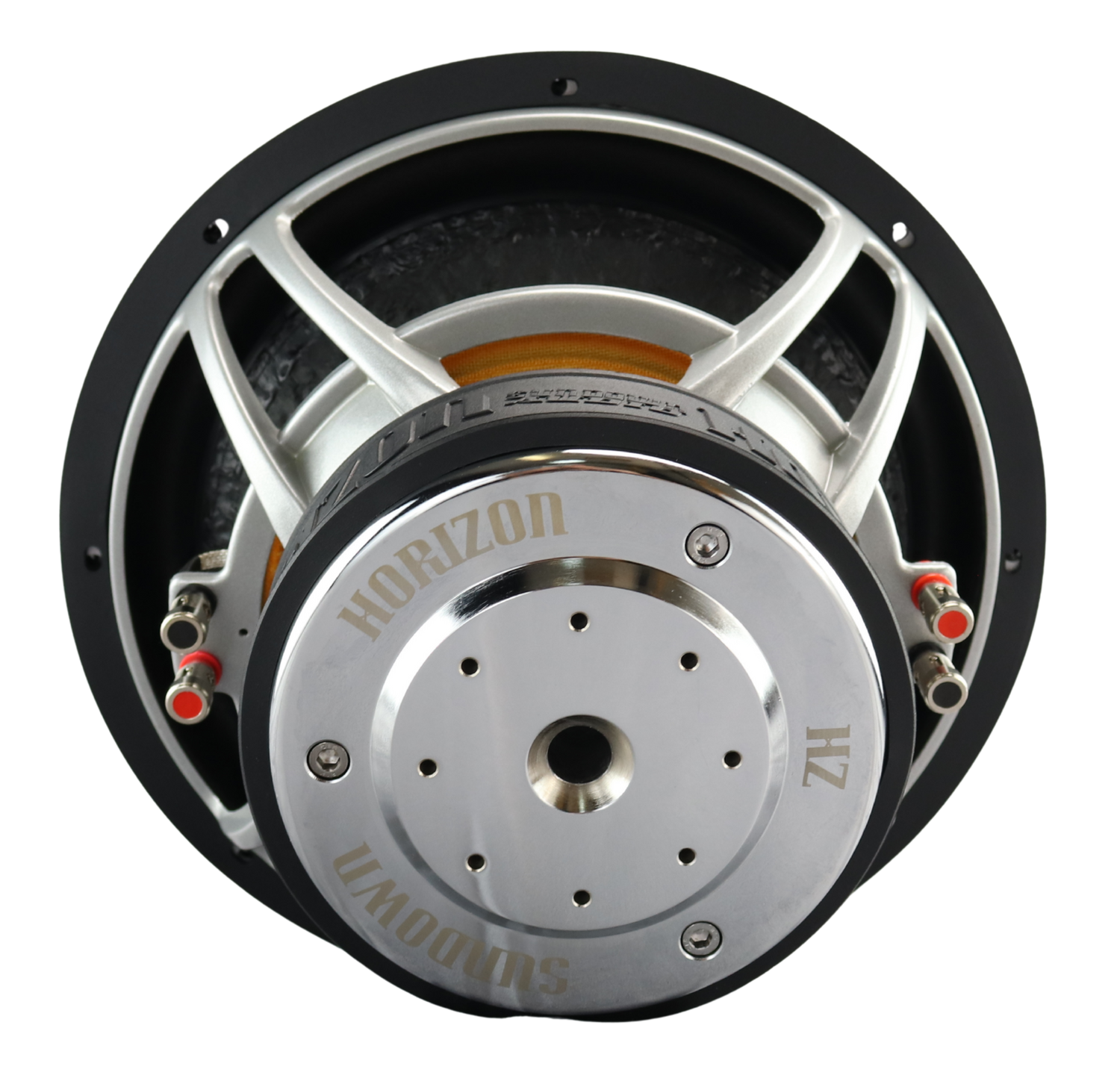

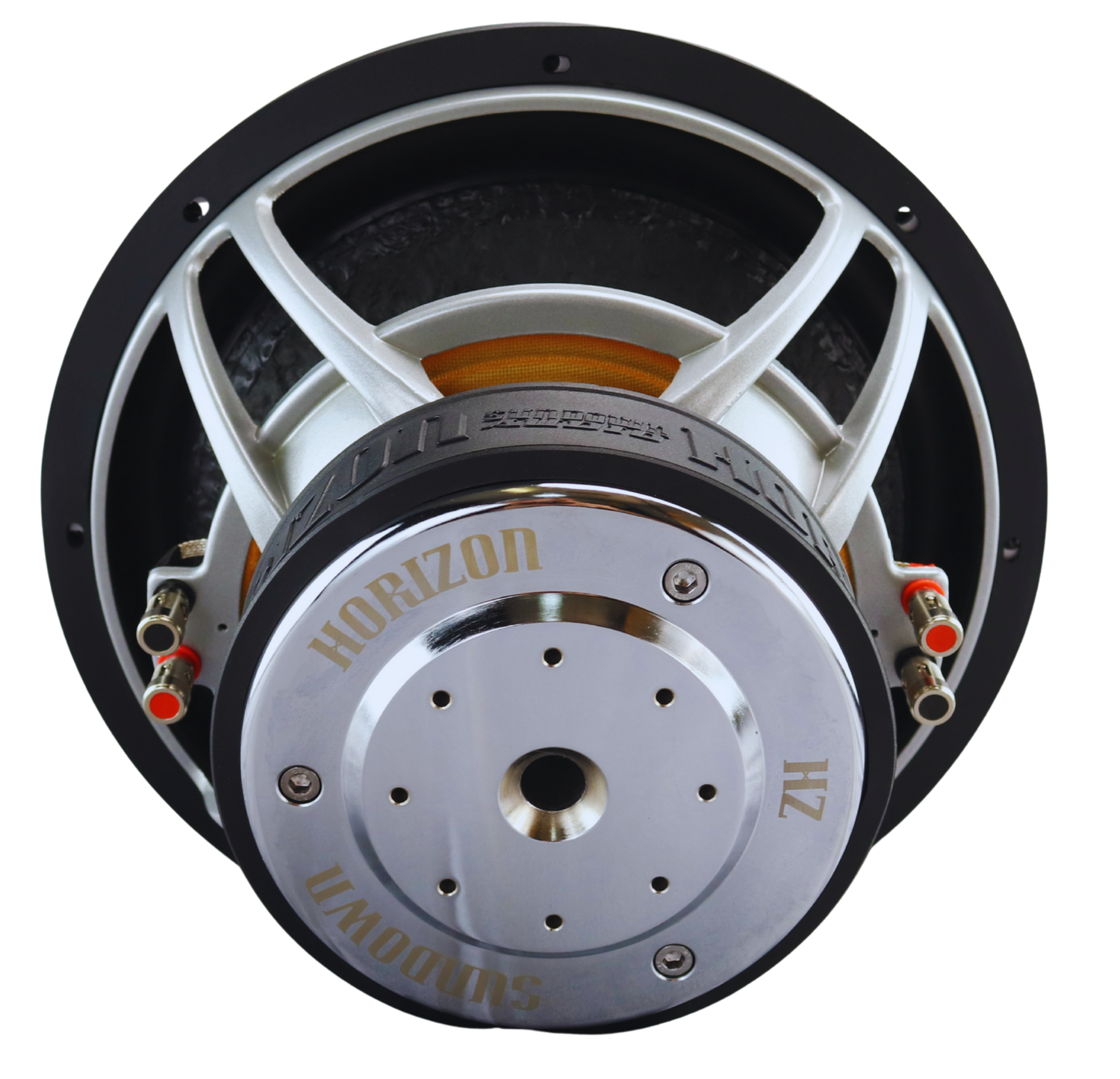

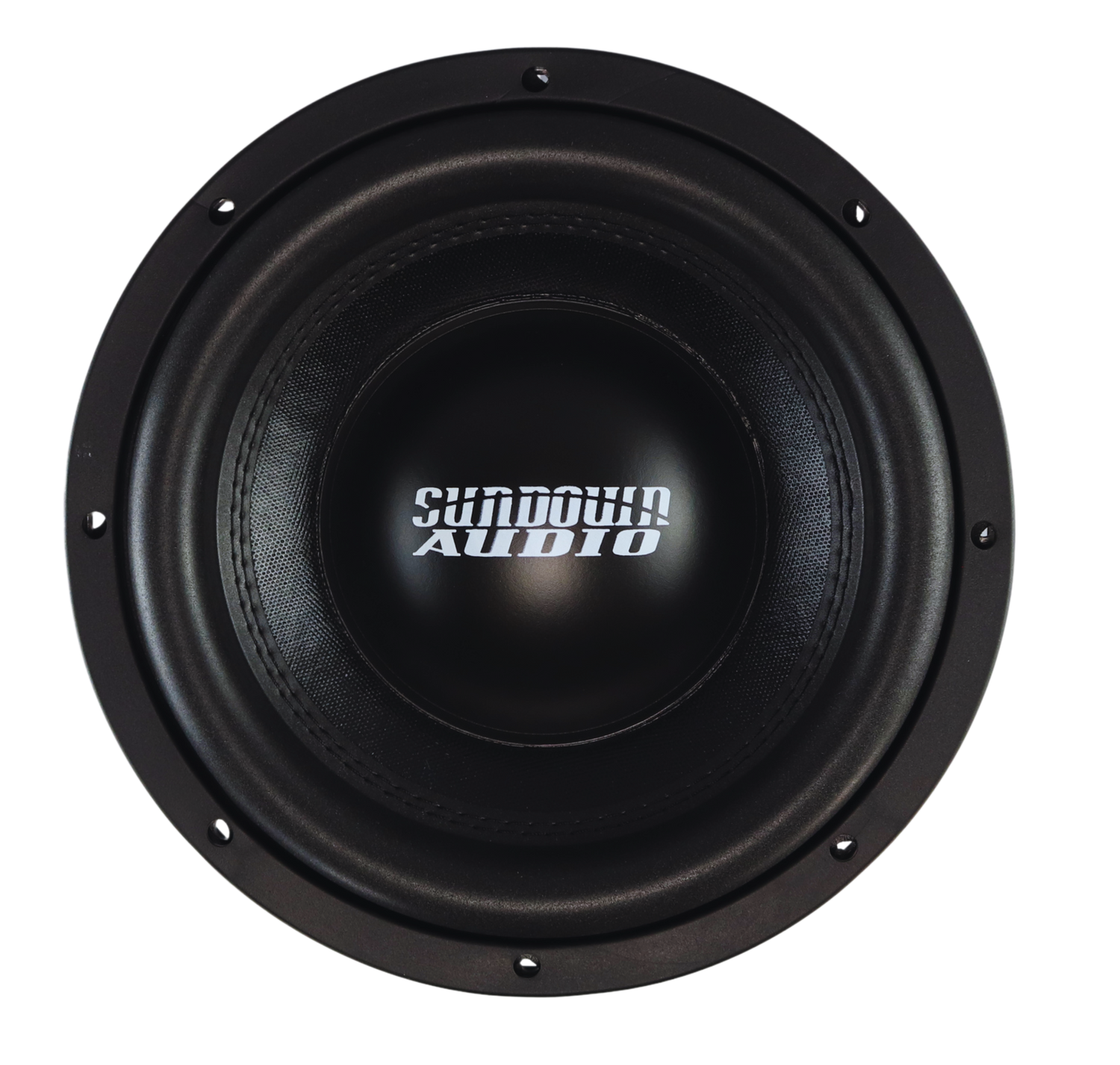

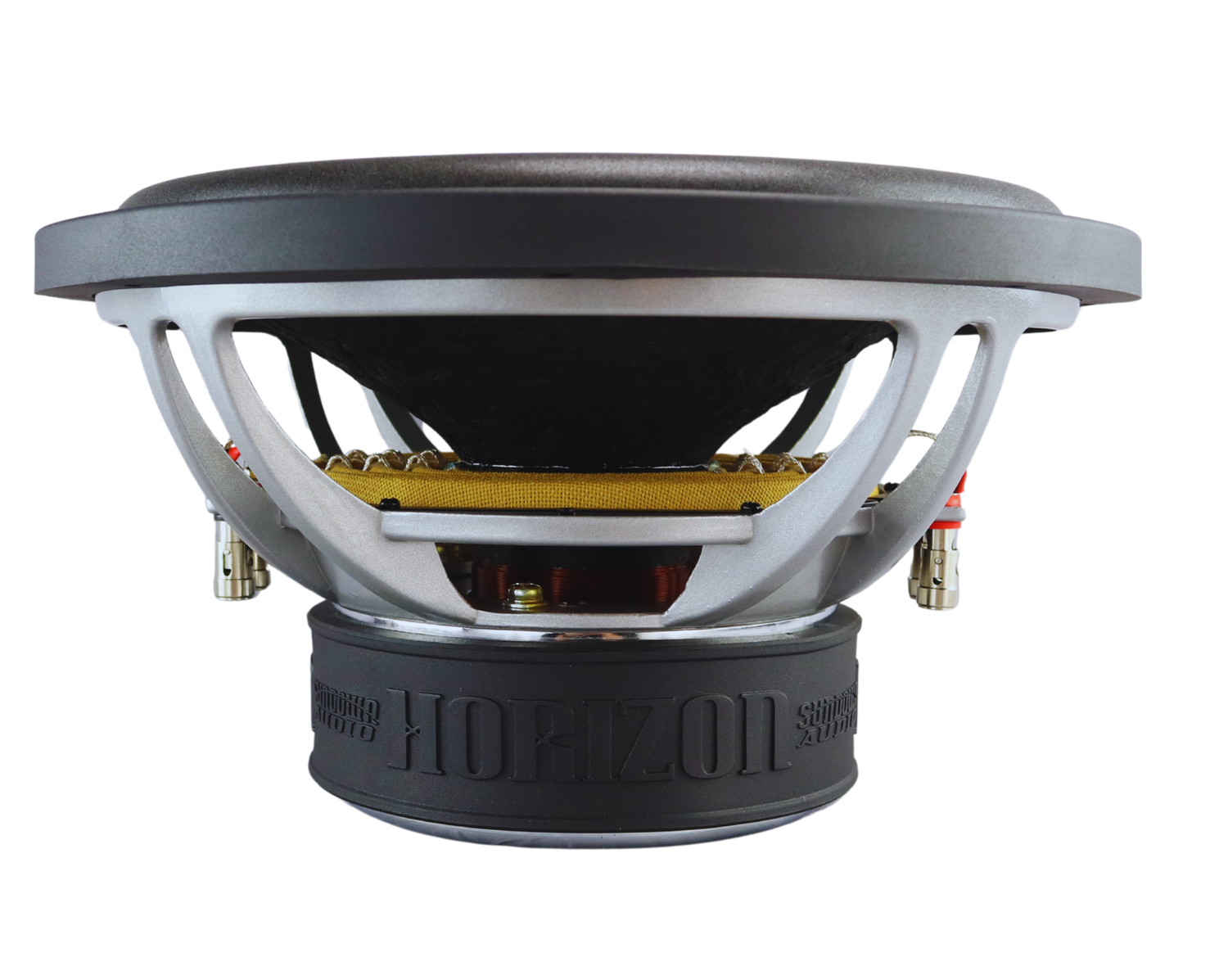

Horizon HZ 12" Subwoofer
Regular price
$319.99 USD
Regular price
Shipping calculated at checkout.
HZ Series Key Features:
- RMS Power:
- 12" – 750W RMS / 2.5" Voice Coil
- Voice Coil Options: Dual 4Ω - High temp 4-layer copper voice coil wire
- XMAX: Class-leading 14mm Xmax
- Frame: Heavy-duty cast aluminum basket
- Cooling: Vented motor gap and pole piece for optimized heat dissipation
- Durability: Stitched Mini-XL tinsel leads and bolted spider pack
- Suspension: High-roll surround with progressive spider for smooth, controlled excursion
- Recommended Enclosure: Ported for maximum efficiency and output
| Parameter | D4 Model |
|---|---|
| Re | 6.13 Ω |
| Fs | 31.7 Hz |
| Qms | 3.7700 |
| Qes | 0.5980 |
| Qts | 0.5160 |
| Vas | 54.360 L |
| Mms | 171.76 g |
| Cms | 0.15 mm/N |
| BL | 18.730 T·m |
| Sd | 735.5 cm² |
| Xmax | 14mm |
| SPL (1W/1m) | 86.5 dB |
| Specification | D4 Model |
|---|---|
| RMS Power | 500 W |
| Peak Power | 1000 W |
| Displacement | 0.12 cu ft |
| Mounting Depth | 6.3" |
| Outside Diameter | 12.5" |
| Cutout Diameter | 11.2" |
| Motor Diameter | 6.15" |
| Sealed Enclosure | 1.0cu ft |
| Ported Enclosure | 1.75 cu ft |
| Recommended Port Tuning | 35hz |
| Recommended Port Area | 26 sq in |
| Xmax | 14mm |
| 4th Order Sealed | .75cu ft |
| 4th Order Ported | 2.25cu ft |
| 4th Order Port Area | 15sq in |
| 4th Order Port Length | 6" |
